| 容器罐槽系列》混合機:V型雙臂混合機 V-shaped double-arm mixer |
|
| |

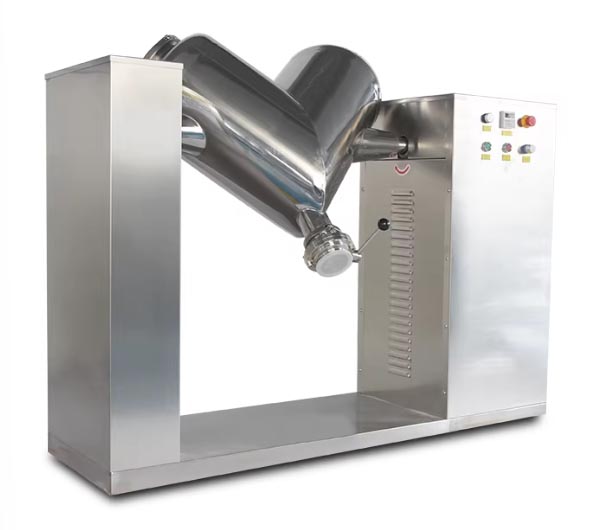

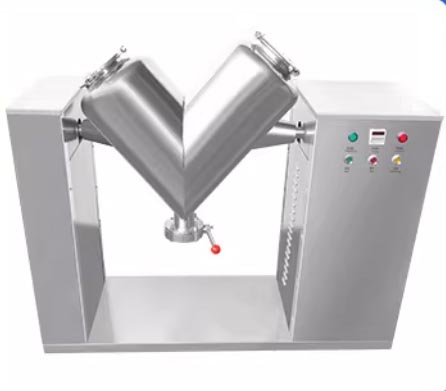

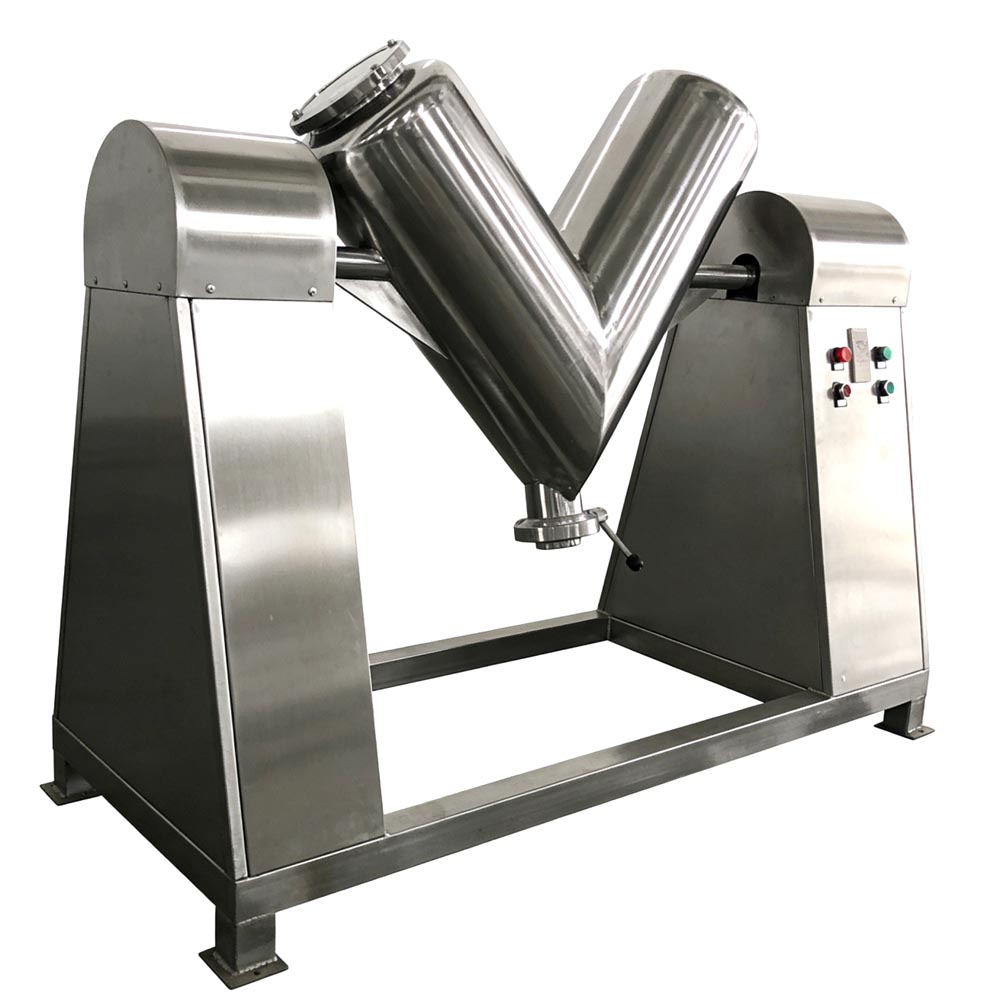

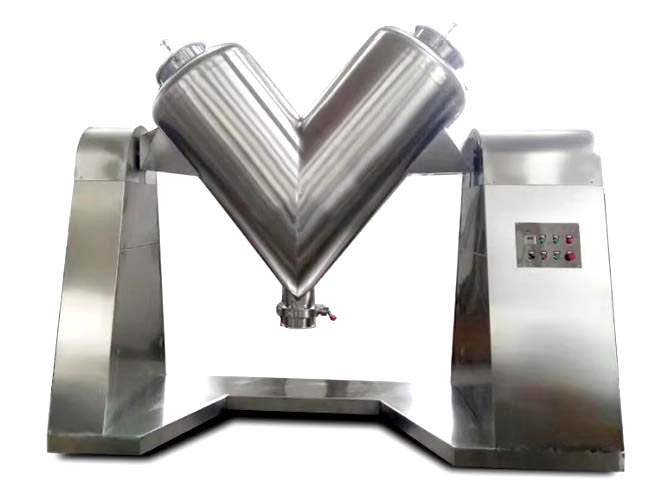

V型雙臂混合機?V-shaped double-arm mixer? |
| 簡介brief introduction |
本設備采用手工進料和封閉碟形閥出料結構，可以實行無粉塵操作，同時物料在混合時沒有機械擠壓和強烈摩擦，可以保持物料顆粒完好無損，本機混合筒采用不銹鋼制造，對混合物料無任何污染。另外，本機還裝有定時裝置，可以控制物料的混合時間。
This equipment adopts a manual feeding structure and a closed disc valve for discharging, enabling dust-free operation. Meanwhile, during the mixing process, there is no mechanical squeezing or intense friction on the materials, ensuring that the material particles remain intact. The mixing cylinder of this machine is made of stainless steel, causing no pollution to the mixed materials. Additionally, this machine is equipped with a timing device to control the mixing time of the materials.
|
|
本機通過減速機構帶動筒體旋轉，利用混合機兩圓柱筒長度的不相等形成的不對稱進行混合，當混合機運動時，物料從分解到組合，由于勢能的不同，就產生了一個橫向力，推動物料進行橫向交流。 當物料從組合到分解，由于物料平面不同，就產生了一個橫向力又推動物料進行橫向交流。 筒體旋轉一周，約使 25% 的物料從一個筒體流向另一個筒； 同時筒體旋轉時又使物料產生徑向流動，這樣物料進行橫向、徑向分解，組合交替進行，使物料達到非常均勻的效果。
This machine drives the cylinder to rotate through a deceleration mechanism. It utilizes the asymmetry formed by the unequal lengths of the two cylindrical barrels of the mixer to carry out the mixing process. When the mixer is in motion, the materials undergo decomposition and recombination. Due to the difference in potential energy, a lateral force is generated, pushing the materials to exchange laterally. When the materials transition from recombination to decomposition, a lateral force is again produced due to the difference in material planes, promoting lateral exchange of the materials. With each rotation of the cylinder, approximately 25% of the materials flow from one barrel to the other. Meanwhile, as the cylinder rotates, it also causes the materials to flow radially. Thus, the materials undergo alternating lateral and radial decomposition and recombination, achieving a highly uniform effect. |
用于混合粉狀的物料，使不同質的物料混合均勻。
Used for mixing powdered materials to ensure uniform blending of different types of materials. |
本機適用于制藥及其它工業上的干物料顆�；旌椭�。
混合筒結構獨特、混和功效高、無死角、混和均勻。
This machine is suitable for mixing dry material particles in the pharmaceutical industry and other industrial applications. The mixing cylinder has a unique structure, high mixing efficiency, no dead corners, and ensures uniform mixing.
|
| 主要技術參數Specification |
型號
Model |
VH-50 |
VH-100 |
VH-200 |
VH-300 |
VH-500 |
VH-1000 |
VH-1500 |
VH-2000 |
全容積
Full volume (L) |
50 |
100 |
200 |
300 |
500 |
1000 |
1500 |
2000 |
最佳裝量
Optimal dosage (kg) |
10 |
30 |
40 |
60 |
100 |
200 |
300 |
400 |
最大裝量
Maximum capacity (kg) |
15 |
40 |
100 |
150 |
250 |
500 |
750 |
1000 |
長×寬×高 Length × Width × Height
(L × W × Hmm) |
1280 × 480 × 1250 |
1580 × 650 × 1460 |
2010 × 850 × 1440 |
2220 × 900 × 1470 |
2550 × 990 × 2250 |
3050 × 1200 × 2580 |
3000 × 1100 × 3110 |
3200 × 1200 × 3350 |
筒體直徑
Diameter of cylinder (mm) |
Φ 260 |
Φ 350 |
φ 450 |
φ 500 |
φ 600 |
φ 800 |
φ 900 |
φ 1000 |
進料直徑
Diameter of feed (mm) |
φ 150 |
Φ 160 |
Φ 250 |
φ 300 |
Φ 360 |
φ 400 |
φ 400 |
φ 400 |
出料直徑
Diameter of discharge (mm) |
φ 80 |
Φ 100 |
Φ 150 |
Φ 200 |
Φ 200 |
Φ 200 |
φ 200 |
φ 200 |
筒體轉速
Rotation speed of cylinder ( r/min ) |
20 |
15 |
15 |
15 |
13 |
12 |
10 |
10 |
功率
power (kw) |
0.75 |
1.1 |
1.5 |
1.5 |
2.2 |
4.0 |
3.0 |
5.5 |
| 產品結構Product Structure |

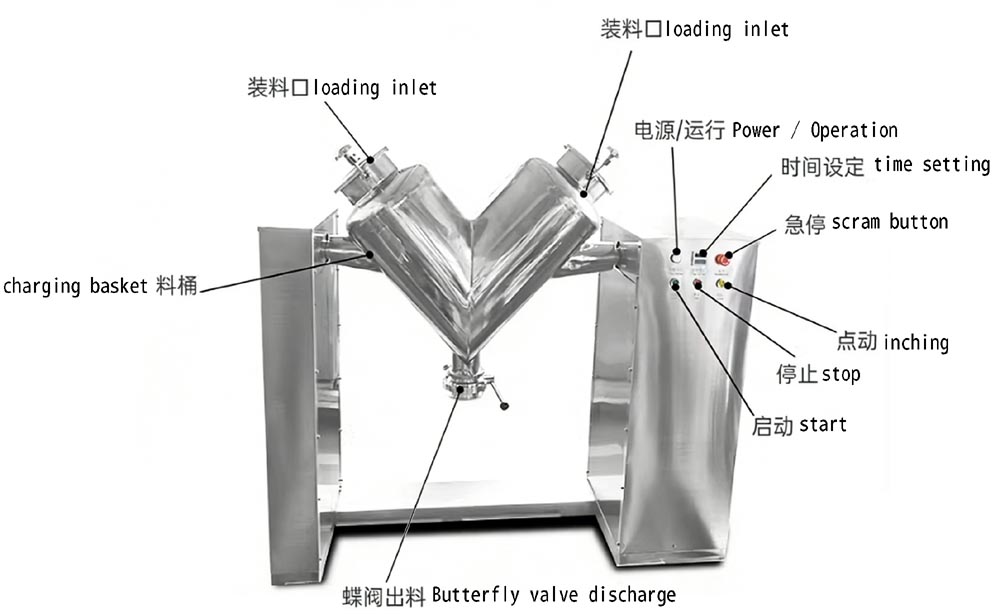

| 產品細節product details
|
 |
| 01 |
| |
機身外殼
fuselage cover |
采用304不銹鋼制造，食品級，易于維護。
It is made of 304 stainless steel, food-grade, and easy to maintain.
|
|
| 02 |
| |

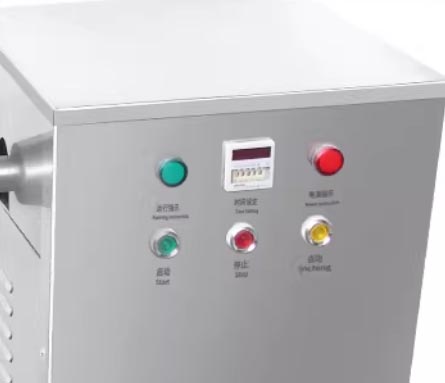

控制面板
control panel |
| 具有主機開、關、點動和定時功能，操作簡單方便。It has the functions of starting and stopping the main unit, as well as point motion and timing. The operation is simple and convenient.
|
|
 |
 |
| 03 |
| |

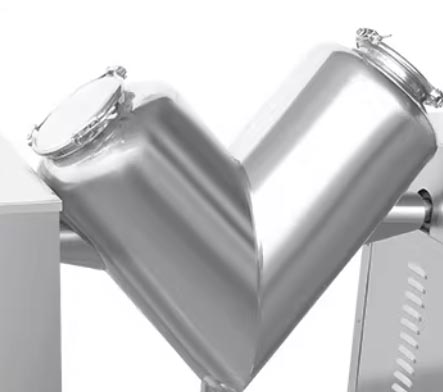

進料口
feed port |
松開螺栓，將物料加入混合倉內。
Loosen the bolts and add the materials into the mixing chamber.
|
|
| 04 |
| |

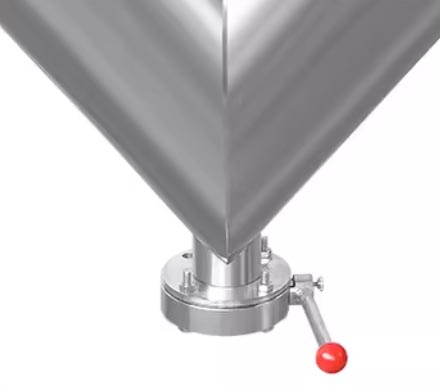

出料口
discharge hole
|
| 物料混合均勻后，打開排料閥，將混合后的物料放入其他容器中。After the materials are thoroughly mixed, open the discharge valve and transfer the mixed materials to other containers.
|
|
 |
